Viscosity Baths for Precise Temperature Control from -60 to 150 °C

Precise temperature control is essential for reliable, reproducible viscosity measurements. LAUDA Scientific viscosity baths, also known as viscothermostats, provide stable, uniform temperature conditions for glass capillary viscometers. From routine kinematic viscosity testing according to ASTM D445 to demanding low-temperature applications, our systems support accurate measurements in quality control and research. They provide temperature-controlled conditions for capillary viscometry using instruments specified in ISO 3105.

Explore our range of viscosity baths, from the compact Entry-Level Series and the established Viscotemp Series to the high-performance Viscotemp Pro Series. Depending on the model, cooling equipment and configuration, the portfolio covers temperatures from -60 to 150 °C. Select the appropriate bath for your glass capillary viscometers, the modular PVS Viscosity Measuring System or the fully automated VAS Viscosity Autosampler to match your laboratory workflow.

Discuss your Viscosity Bath Requirements

Entry-Level Series (Viscocool & Viscotemp)

  • Cost-effective, compact viscosity baths for routine capillary viscometry
  • Viscocool 6: Space-saving transparent viscosity bath with integrated Peltier cooling – no additional cooling equipment required

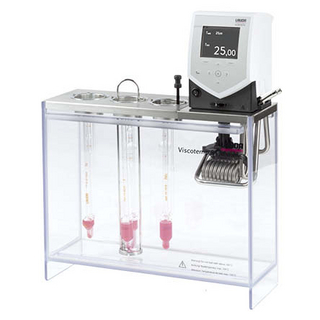

  • Viscotemp ET: Versatile polycarbonate bath for manual or automated viscosity measurement stations
  • Viscotemp 18: Robust all-glass viscosity bath for use with silicone oils and aggressive samples at temperatures around 100 °C


Discover the Entry-Level Series

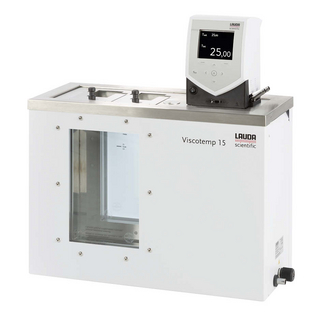

Viscotemp-Series

  • High-quality stainless steel viscosity bath with a large viewing window for direct observation of glass capillary viscometers during measurement
  • Precise temperature control from 0 to 105 °C for applications such as viscosity index determination of engine oils and solution viscosity measurement of polymers
  • Designed for multiple manual viscosity measurement stations or automatic measuring stands (iVisc/S5)
  • Compatible with the automatic Cleaning Module VRM 4
  • Corrosion-resistant bath for use with aggressive samples and suitable silicone oils


Discover the Viscotemp-Series

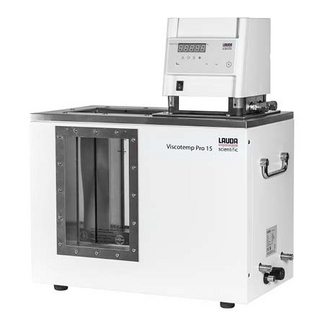

Viscotemp Pro-Series

  • High-performance viscosity baths with precise temperature stability and uniformity across the operating range, supported by adaptive PID control
  • Double-chamber design maintains a constant liquid level in the measurement chamber, even when temperatures change
  • Designed for fully automated capillary viscosity measurements and integration with VAS Autosampler Systems
  • Special Viscotemp Pro L models with five-layer insulating glazing for low-temperature viscosity testing down to -40 or -60 °C when combined with suitable external cooling equipment
  • Corrosion-resistant stainless steel baths in 15, 24 or 36 L versions, with an integrated heat exchanger and flexible configuration options


Discover the Viscotemp Pro-Series

The perfect transparent thermostat for every application

Measuring points for manual measurement (stopwatch) or automatic measuring stands

Bath type

Temperature range

Number of measuring points

Viscotemp ET

15..90°C

4x man./2x autom.

Viscotemp 18 (glass)

20..100°C

5x man./1x autom.

Viscocool 6

15..90°C

2x man./1x autom.

Viscotemp

0..105°C

7x man./4x autom.

Viscotemp Pro

-60..150°C

9x man./4x autom.

Further information

Request our complete catalog

Request our complete product range now. It contains a detailed overview of all products, accessories and spare parts of our viscosity measuring systems on more than 50 pages.

Available as digital or printed version in English language.
